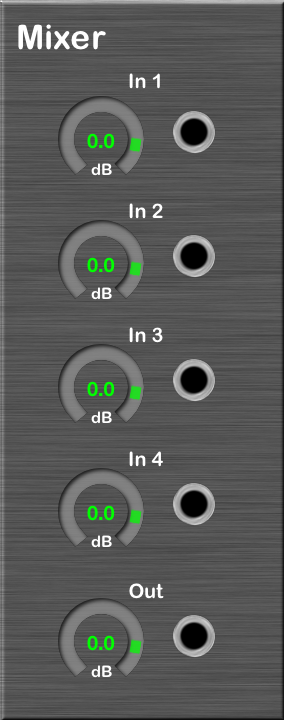

4 Channel Mixer

This is a module which mixes 4 waves and outputs it. Connectors/Parameters In 1…4 Select wave sources to mix. It is able to change the volume of the input. Out This outputs the mixed. It is able to change the volume of the output.

KQ MiniSynth – All modules

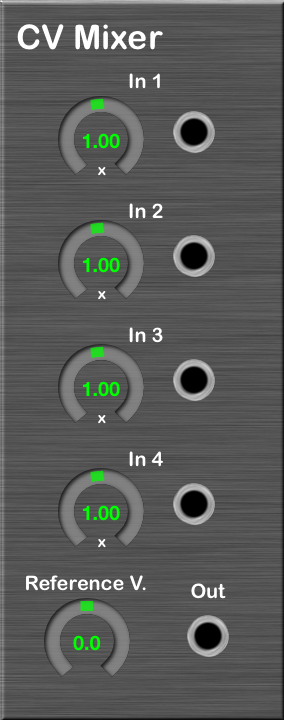

CV Mixer

Mixes 4 CV inputs. The each difference between each “In” input value and the reference value is added up. Out = Σ((In_n – Ref) × by_n) + Ref Connectors / Parameters In 1…4 Select a source to input. The knobs represents multiplier. Reference V. An reference value.

Ref.	In1 Mul.(x)	In2 Mul.(x)	In1 Val.	In2 Val.	Out
0.0	1.0	0.5	0.25	0.5	0.5
-1.0	1.0	0.5	0.0	0.5	0.75
1.0	0.5	0.25	0.0	0.0	-0.75

KQ MiniSynth – All modules

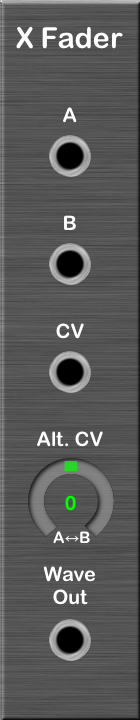

Crossfader (formerly Dry Wet Mixer)

This changes an input ratio of A and B by CV and output it. The output is A only when CV is -1, B only when CV is 1, A and B at the same volume when CV is 0. Connectors / Parameters A, B Select sources to input. CV This controls an input ratio of A and B. Alt.CV is used when CV has no connection. Wave Out The output.

KQ MiniSynth – All modules

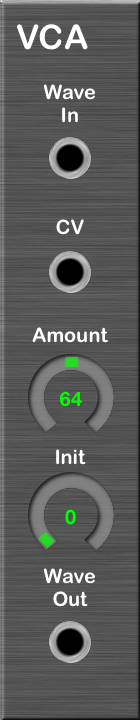

Voltage-Controlled Amplifier

This is a module which amplifies the input wave by Control-Voltage (CV) and outputs it. Connectors/Parameters Wave In Select a wave source to amplify. CV Select a CV source. Amount An amount of the CV. Init Initial volume. Wave Out This outputs a wave.

KQ MiniSynth – All modules

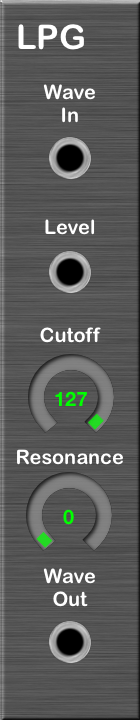

Low-Pass Gate (Version 3.0)

This is a module which amplifies the input wave by Level, applies a Low-pass filter and outputs it. Connectors / Parameters Wave In Select a wave source to amplify. Level Select a Level source. Cutoff A cutoff frequency level. Resonance A strength of the resonance Wave Out This outputs a wave.

KQ MiniSynth – All modules

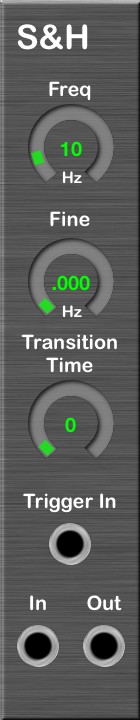

Sample-and-Hold Amplifier

This is a module which keeps the input value for a certain time. Enter a frequency to update the value. Connectors / Parameters Freq An integer part of the frequency. Fine A decimal part of the frequency. Transition Time Changes the output smoothly during this duration when stepping forward. The output changes immediately when this value is 0. Trigger In If this is connected, the module updates the value when a pulse is input instead of the above frequency. In Select a source to do sample-and-hold. Out This outputs the processed.

KQ MiniSynth – All modules

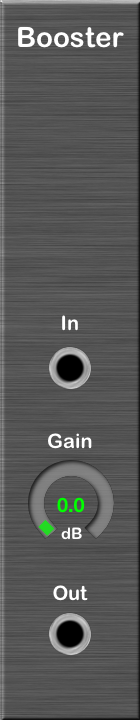

Booster

This is a module which boosts a input and limit peaks. If Sinewave is input and boosted maximum, the output is like Squarewave. Connectors/Parameters In Select a source to input. Gain An amount to boost the input with. Out This outputs the boosted.

KQ MiniSynth – All modules
